Product
Our patented modular railing system, engineered for seamless on-site adaptation, guarantees rapid installation, unmatched flexibility and uncompromising safety – ensuring absolute precision and flawless execution in every project, under any conditions.
Patented Technology
Industrial Certification
Premium Quality

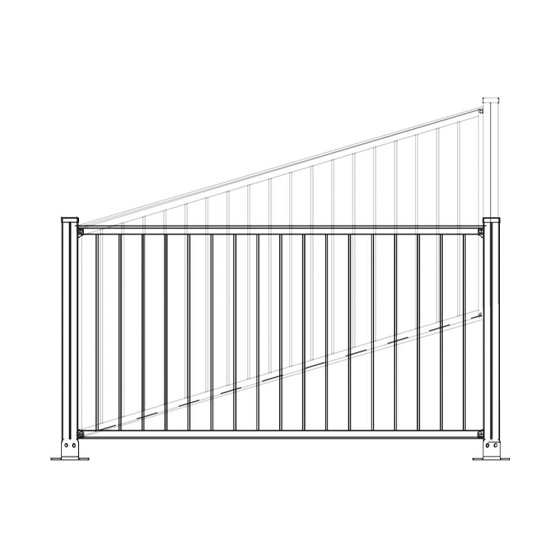

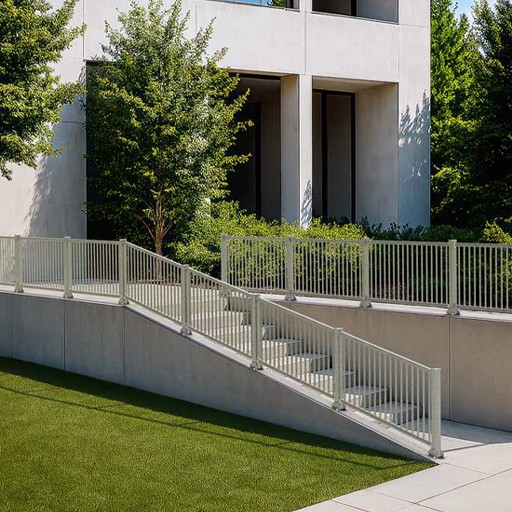

The DRS adapts to ±17° inclinations, maintaining elements vertically aligned while ensuring safety, thereby maximizing installation efficiency for infrastructure projects.
– Modules Adapt Instantly
– 17° | 58 cm Height Adjustment

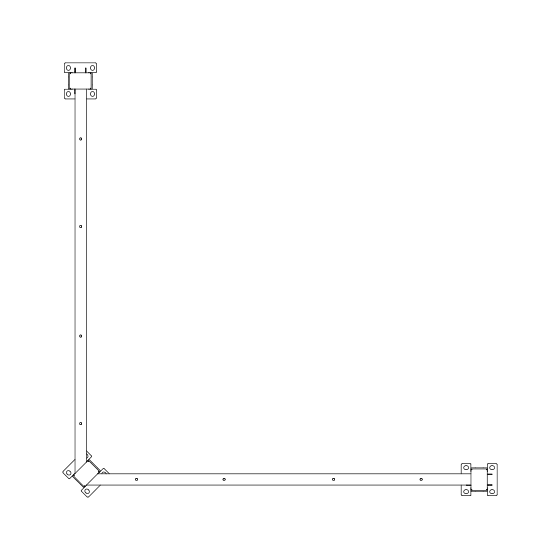

The DRS poles rotate 45° in either direction, forming up to a 90° corner with a single post, providing exceptional flexibility for complex construction layouts.
– Seamless Curve Adjustment
– 90° Maximum Corner Flexibility
The DRS modules can be precisely shortened as required, ensuring a perfect fit for any application. The patented system maintains structural integrity while maximizing flexibility.
– Quick Modifications, No Welding
– Maintains Certified Strength
– Modules Adapt Instantly
– 17° | 58 cm Height Adjustment
– Seamless Curve Adjustment
– 90° Maximum Corner Flexibility
– Quick Modifications, No Welding
– Maintains Certified Strength
Application
Enhance efficiency, safety, and precision in project planning and execution for urban and industrial infrastructure with our certified railing system.
The Dynamic Railing System is a certified safety railing engineered for maximum protection in high-traffic areas such as bridges, pedestrian zones, industrial facilities and rooftops. Its modular, maintenance-free design adapts to diverse applications – whether as a corrosion-resistant steel railing outdoors or a permanent curb-mounted solution.
Combining durability with architectural flexibility, this security railing meets the highest standards for modern infrastructure.
Certification
The DRS (Dynamic Railing System) is engineered for structural reliability and undergoes rigorous testing to ensure compliance with italian industry standard NTC 2018 (IT) and European standard UNI CEN/TR 1317-6 and UNI EN 1993-1-3:2007.
With patent protection extending from Italy to Europe and beyond, the DRS system is globally safeguarded to preserve its innovative character.
Mechanical Strength:
| Horizontal load on upper handrail | 1.5 kN/m | 2 kN/m | 3 kN/m |
| Pole spacing | 2500 mm | 2000 mm | 1500 mm |
Regulatory References:
| Bridge & Viaduct Railings | Designed to comply with multiple classes of UNI CEN/TR 1317-6 with respect to load-bearing capacity and deformation, UNI EN 1993-1-3:2007 and NTC 2018 (IT) |
| General Tolerances | According to ISO 2768-m |
| Galvanization | Compliant with UNI EN ISO 1461 – 14713 |
Collaborations
Chosen by industry leaders for efficient, reliable safety railing solutions in complex infrastructure environments.
Launch the modular DRS safety railing in your region
Advantage
Developed through years of expertise, the DRS as modular safety railing system optimizes installation while ensuring structural reliability, delivering precision, efficiency, and uncompromising safety for real-world challenges.
Eliminates the need for extensive site inspections, saving valuable planning time and streamlining project execution
- Simple yet precise planning
- Fast & easy installation
- Upcycling
Standard modules in stock for immediate delivery, ensuring efficient provisioning and project execution times
Adapts up to ±17° inclinations, ensuring vertical alignment, optimizing installation efficiency & upholding safety
Forms up to a 90° corner with a single post, offering exceptional flexibility for complex construction layouts
Adjustable on-site to the exact required length.
- Replacement: Swap damaged parts
- Recycle: Reuse on other projects
- Expand: Extend your layouts
- Adaptive & light modules
- No welding required
- No land inspection
- Exceeding industry standards
- Precision serial production
- Strict quality assurance

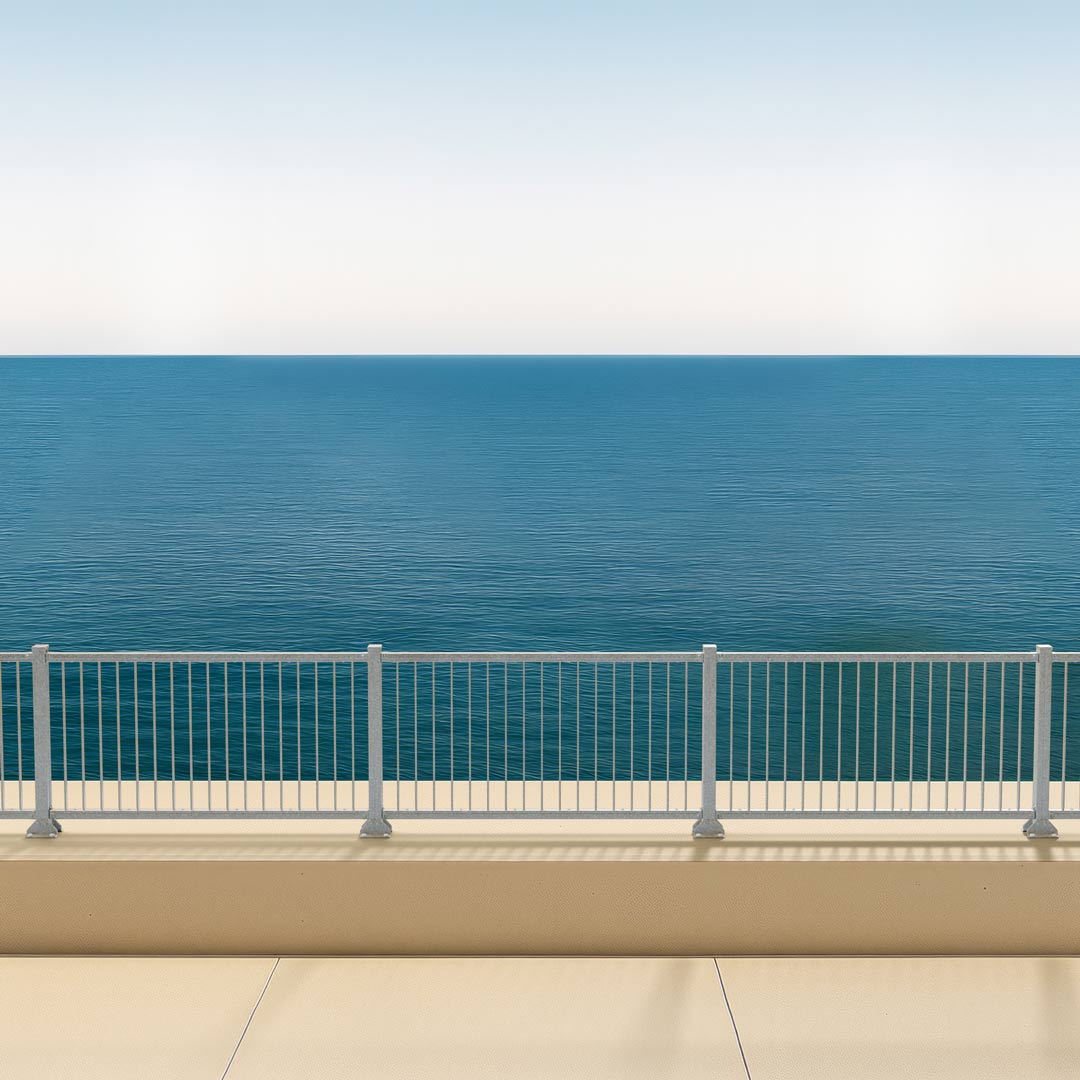

HDG Steel
Delivery 2-5 working days
HDG Steel
15-20 working days

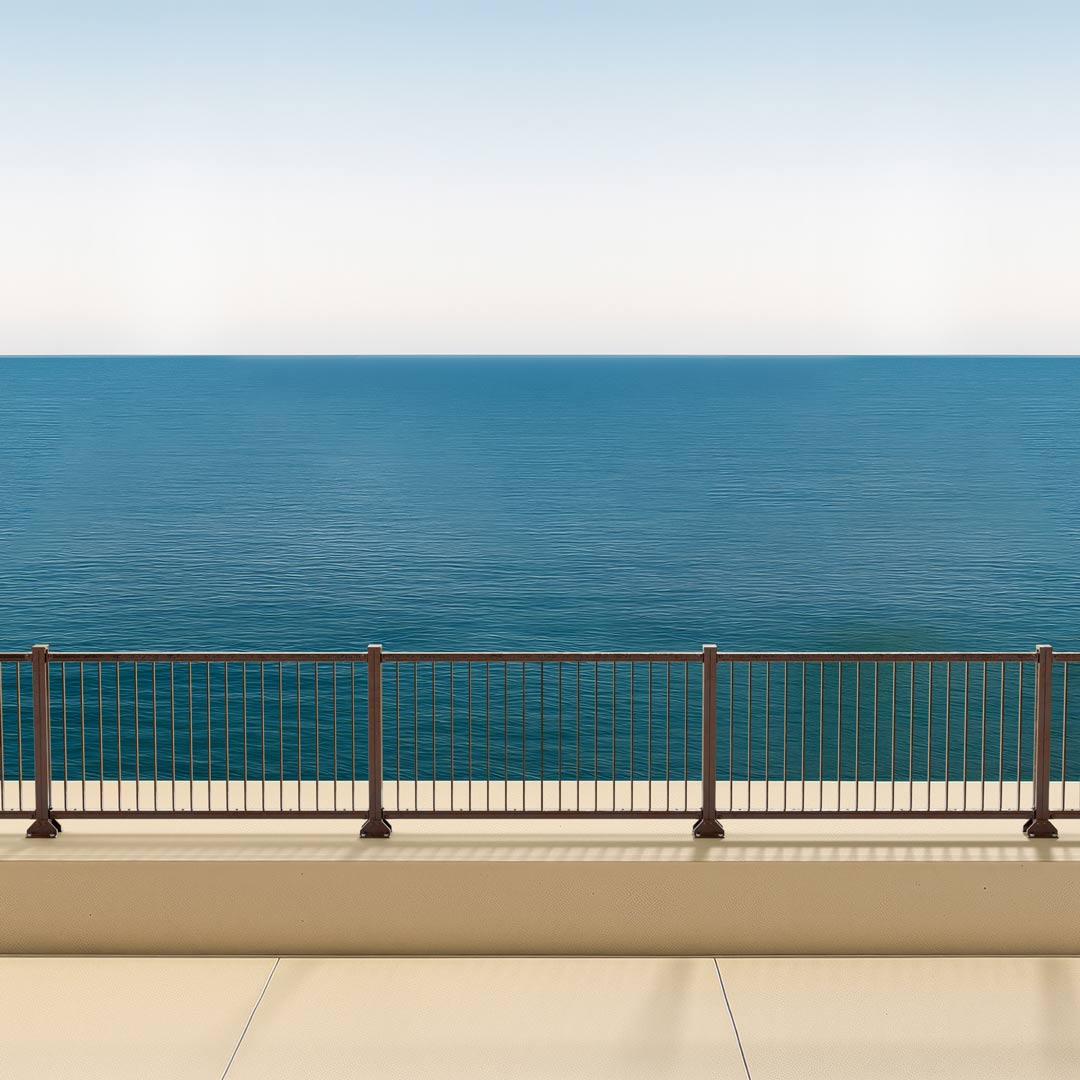

Weathering Steel
2-5 working days
AISI 316
Upon request
Reviews
get started
Specification
The DRS ensures structural reliability, seamless adaptability and certified safety for private, public and industrial applications. Designed for effortless integration. Built to last.
General Specifications:

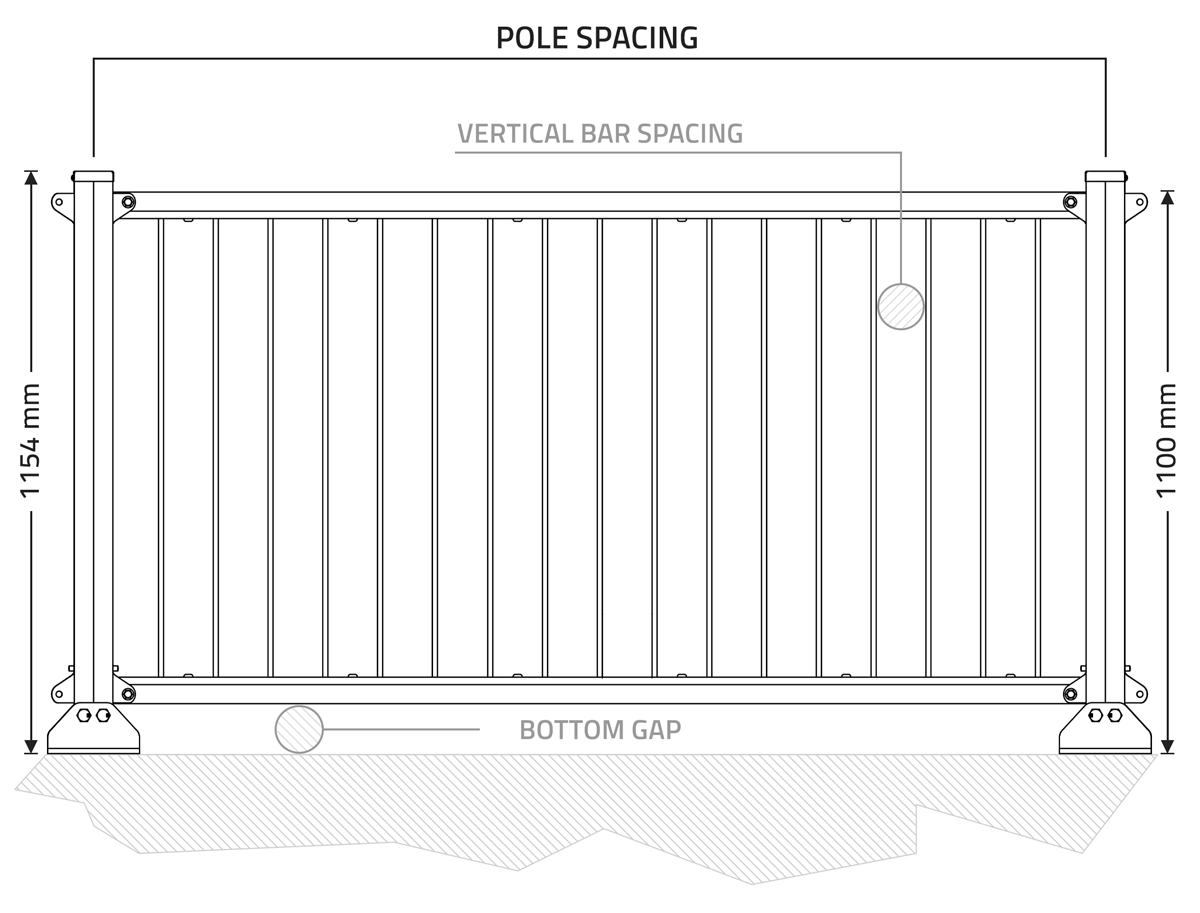

| Product Family | DRS URBAN PRO | ||
| Version | DRS URBAN PRO 1.5 | DRS URBAN PRO 2.0 | DRS URBAN PRO 3.0 |
| Horizontal Load Cap. on upper handrail | 1.5 kN/m | 2.0 kN/m | 3.0 kN/m |
| Compliance | Designed to comply with multiple classes of UNI CEN/TR 1317-6 with respect to load-bearing capacity and deformation, UNI EN 1993-1-3:2007 and NTC 2018 (IT) | ||
| Components | Pre-assembled modules and poles, no welding required | ||
Technical Specifications:

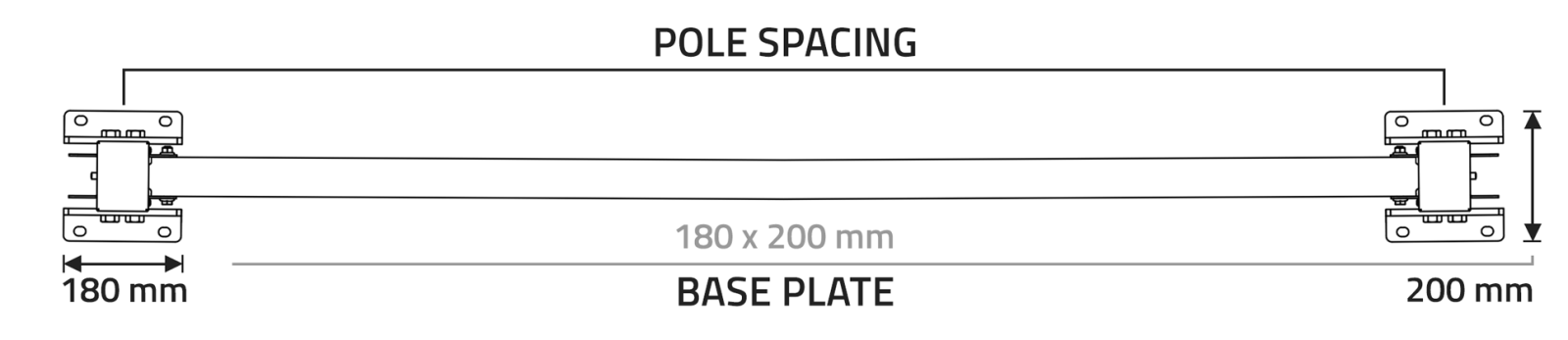

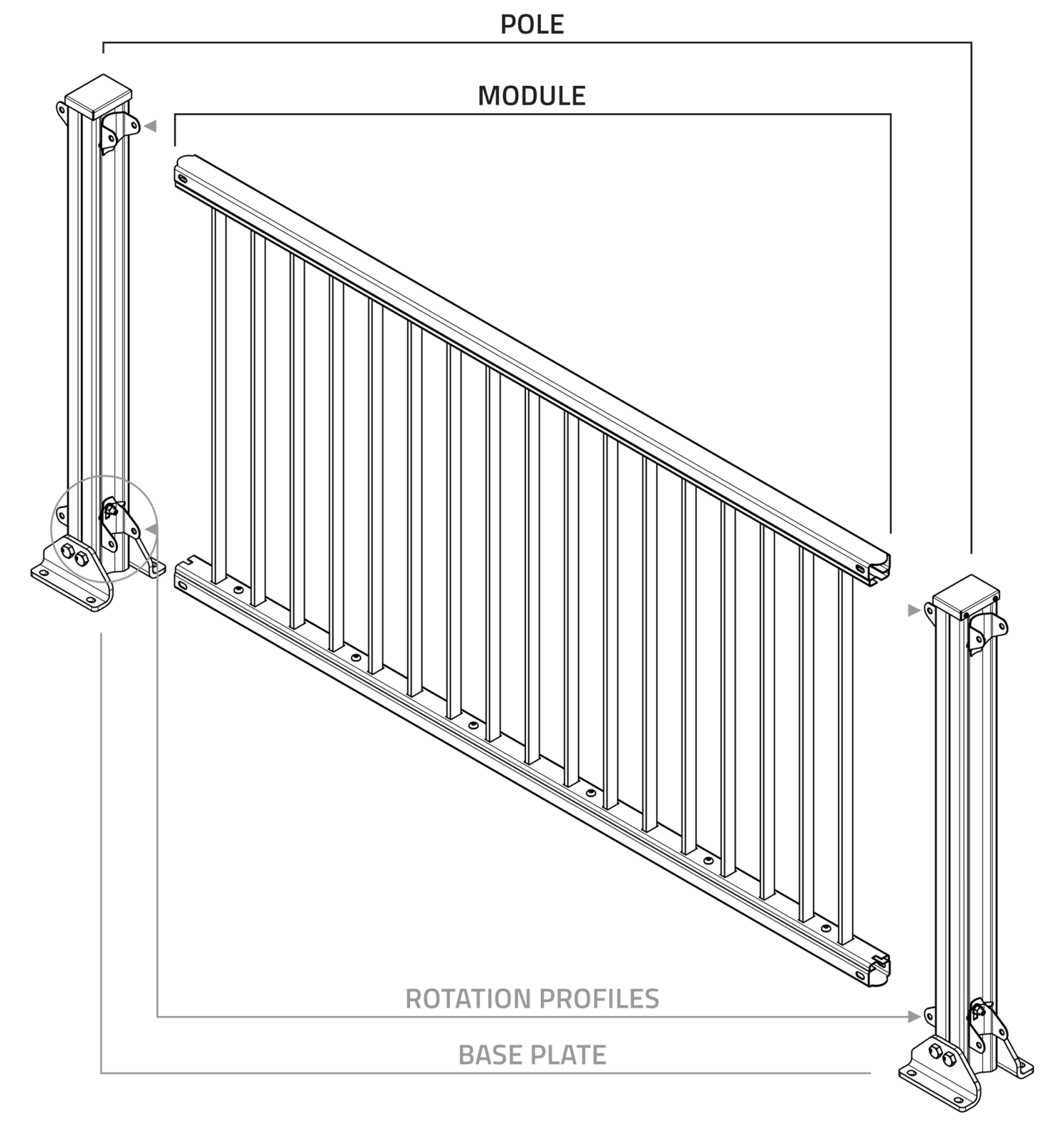

The DRS system consists of adaptable panels and poles, with pole spacing determined by the specific version. Specifically, each version is defined by a different panel length.
Modules connect to poles on each side. Intermediate poles connect to modules on both sides, Terminal poles connect on one side only. Integrated mechanical joints allow for angular adjustment up to 90° and slope adaptation up to 17°.
Installation

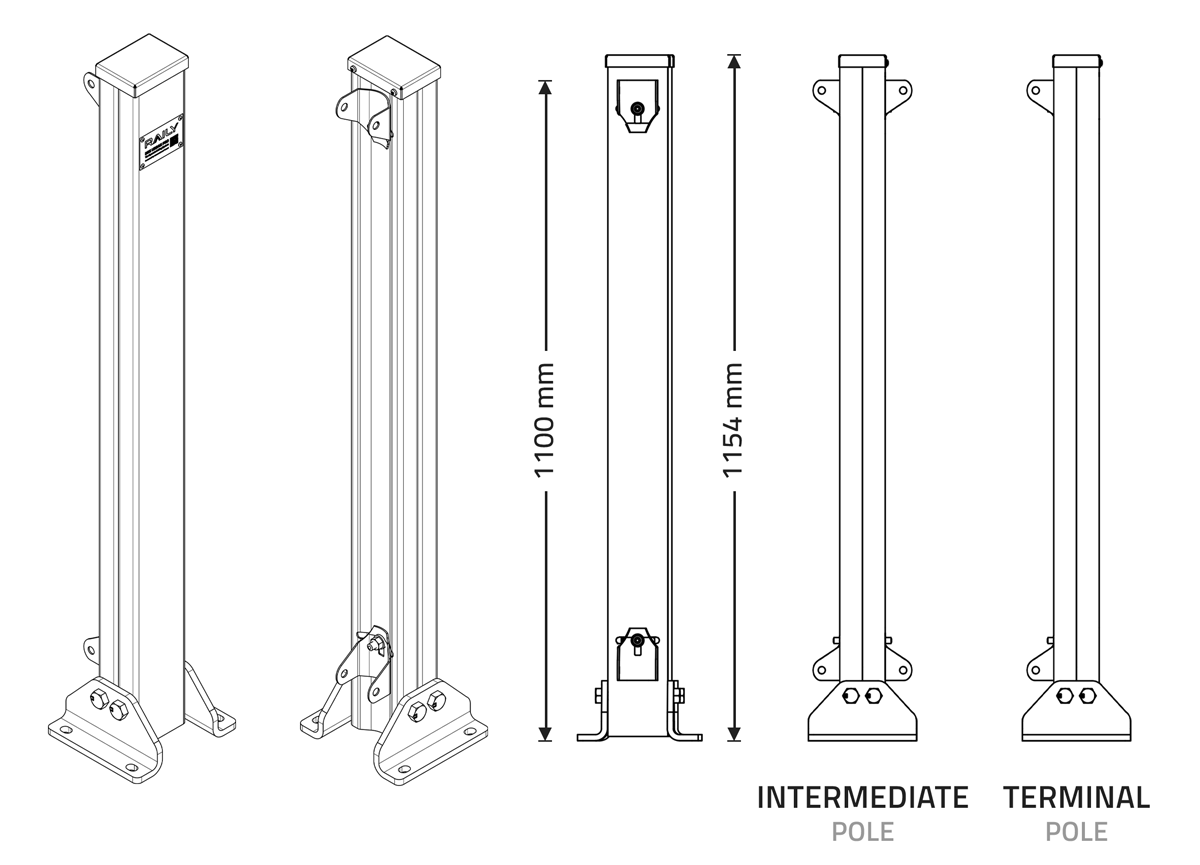

Each DRS section begins and ends with a terminal pole, distinguished by one flat outer face, enhancing safety and visual continuity. Inbetween, intermediate poles provide dual-sided support for the modules.

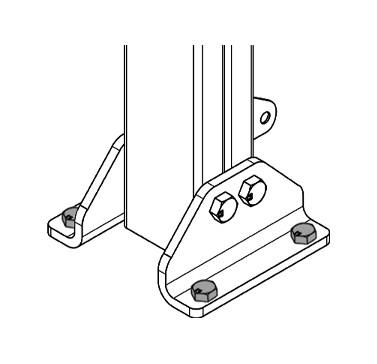

Place the pole and align it vertically through its base. If necessary, trim the panel to the required length for a precise fit.

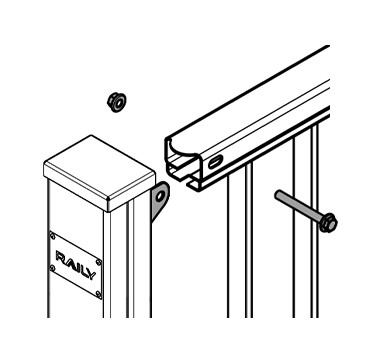

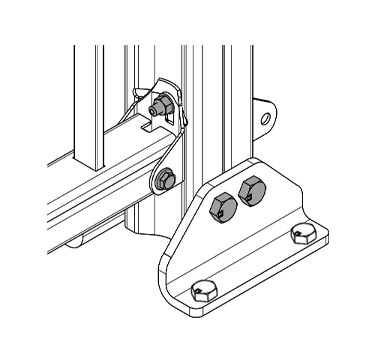

Mount the module to the post’s rotation profiles. Adjust the profiles to achieve the required corner angle.
Attach the module to the next pole. Verify the alignment and finish by tightening the bolts
Video
FAQ
Essential answers to common questions about design, installation, and performance.
Regular maintenance is generally not required. However, in high-traffic areas (e.g. bridges or viaducts), an annual inspection and tightening of screws is recommended due to potential vibrations.
The integrated rotating profiles allow flexible directional changes to any angle up to 45° in either direction, forming up to a 90° corner with a single post. This makes it ideal for installations along curved paths, at corners, or in environments with varying geometry.
The poles can be vertically aligned by adjusting the two half-shells. Even on inclines up to 17°, the poles and panels remain perfectly vertical.

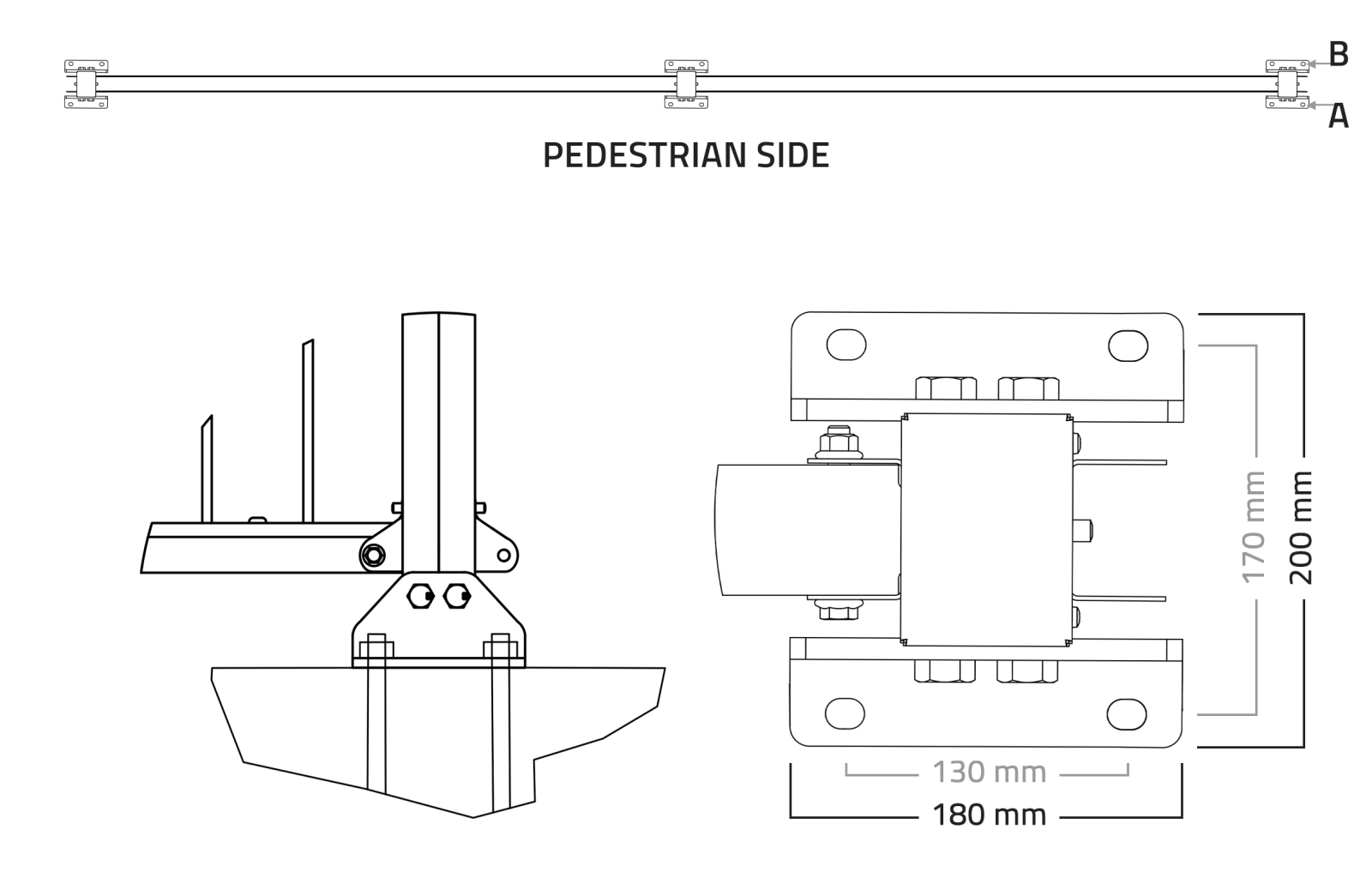

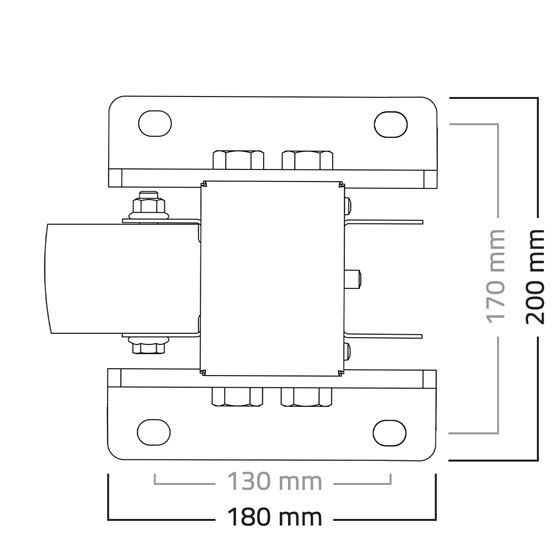

Raily’s responsibility ends at the base plate of the DRS Poles. While we ensure full structural integrity up to this point, all on-site installation, anchoring methods, and substrate conditions fall under the responsibility of the contractor or client. We’re happy to advise on suitable anchoring measures upon request.
Zero gluten, zero soy - 100% metal.
Yes. All modules are fully demountable and can be reinstalled at other locations with different slope or angle requirements. In the event of damage, individual elements can be easily replaced, as each module is delivered pre-assembled for quick and efficient substitution.
Configurator
Enter your project details to receive a personalized cost estimate. A team member will personally review and follow up on your request.
Enter your project details to receive an instant, personalized cost estimate. Only if you check the box, a team member will personally review and follow up on your request.
Contact
We’re at your disposal for any questions or clarifications, whether you need support or are looking for more detailed information.
RAILY LLC
Registered office
Viale A. Degasperi 2/i
I-38073 Cavedine (TN)
Operational Headquarters
Via di Mezzo ai Piani 21/F
I-39100 Bolzano (BZ)
Company Details
Trento Business Registry n° 03033260211
REA n° TN-232659
Recipient Code: USAL8PV
Tax / VAT n° 03033260211
Corporate Capital: € 10.000 i.v.
Certified Email (PEC): raily@legalmail.it
Contact
info@railydrs.com
345 1758192
about
Founded in 2019, Raily is a young and dynamic team with diverse expertise in road safety, mechanical design, project management and logistics. The idea emerged on real construction sites, where recurring challenges demanded a more adaptable railing system.
What started as a concept evolved through countless 3D models and prototypes, refined in close collaboration with industry professionals. The result was DRS-X, a robust and easy-to-install railing system that surpasses conventional standards. Later, the range settled into the DRS series: lighter, more versatile, yet equally reliable.
We don’t just offer railings. We provide time-tested, technically certified solutions for complex, real-world applications.

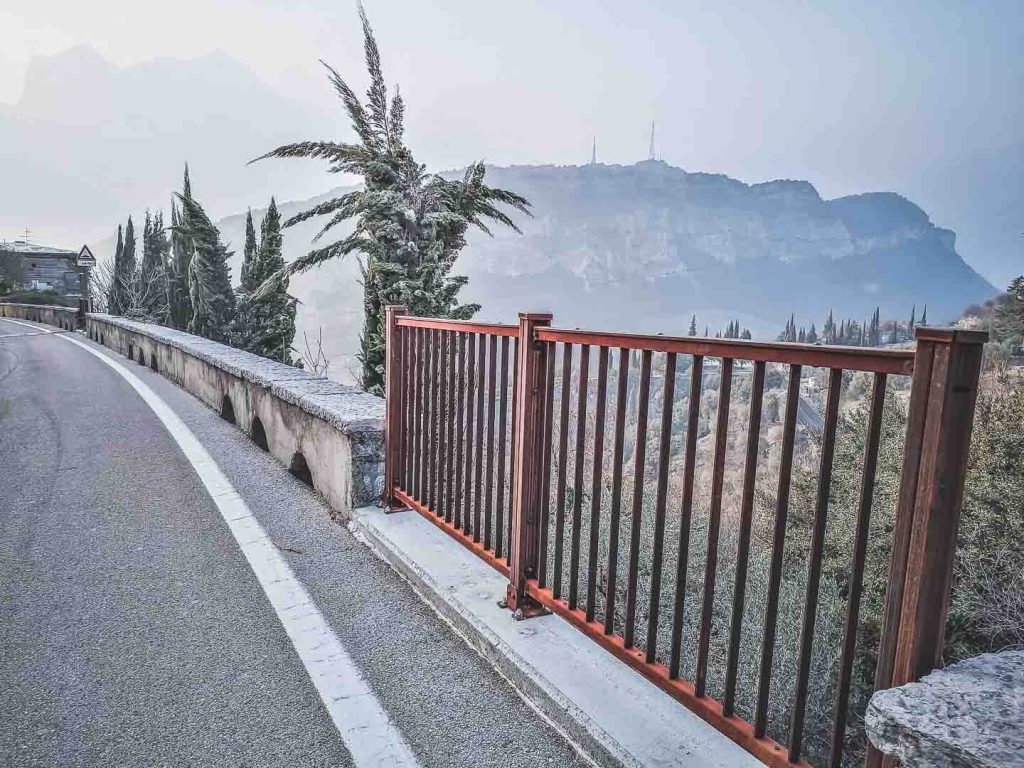

References
Every installation tells a story of precision, adaptability, and performance under pressure. Designed for real-life complexities, our safety railing solutions are deployed across a wide spectrum of projects – each with distinct environmental, technical, and logistical demands.
Reference Projects
